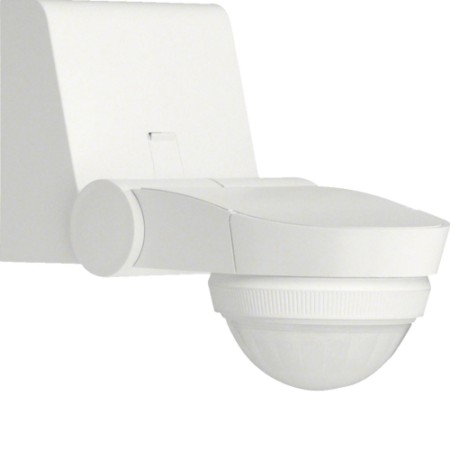

Hager EE840 motion detector 360° IP55 white
External motion detectors for lighting control in commercial buildings and residential buildings by means of the collection of moving persons. detection range of 360° with under-crime protection for local detection and a diameter of max. 12m at a recommended mounting height of 2.5m. vertical lens adjustment of + 90°/-30°. detection using Fresnel lenses. The time delay and the brightness value are set directly on the device or by optional remote control EE 806 possible, a pulse can also be generated. Adjustment of sensitivity from 20% to 100% possible Additional potential-free closing contact. Mounting on wall and ceiling possible. At corners with optional mounting adapter EE855.
| Assembly type: | Coating |
| Detection angle: | 360° |
| Type of protection: | IP55 |
| max. Assembly chair: | 4 m |
| Diameter field on floor: | 12 m |
| Contact loadability: | AC1 |
| Contact type: | 1W + N |
| Switching power bulbs: | 1500 W |
| Brightness measurement range: | 5 / 1000 Lux |
| Control of sensitivity: | yes |
| Supply voltage: | 230V +10% / -15% |
| Frequency: | 50/60 Hz |
| Color: | white |
| Height installed product: | 2.5 m |
