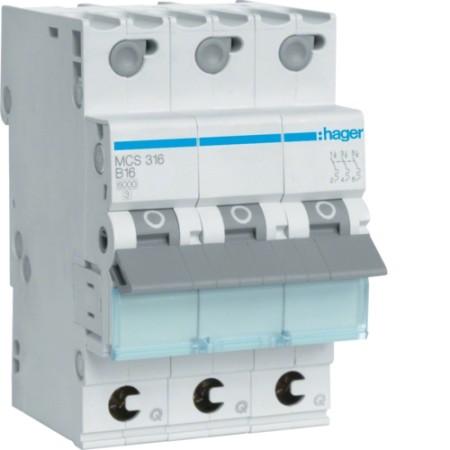

Hager MCS316 LS switch 16A/3pol/C 6kA, QC QuickConnect cable protection switch 3 polig 6kA C-characteristics 16A 3 modules
3polig 6kA C-characteristic 16A Quick Connect 3 Modules
Cable protection switch with QuickConnect - terminal
DIN EN 60898-1 (VDE 0641 part 11):2003-12; EN
60898-1:2003; EN 60898-1, pr A1:2003, at the exit to 16A
and access for the deposit up to 63A.
Contact protection according to IP2x DIN VDE 0106 part 100 with VDE
Signs. LS with time-delayed thermal trigger for
Overload protection and electromagnetic trigger for
Short circuit protection. Suitable for retrofit cultivation of
Additional equipment; Labeling option directly at
Device and individual withdrawal from the phase rail composite
by unlatching the quick-fit rail mounting.
Rated current: 16 A
Trigger characteristic: C
Nominal shutdown capacity: 6 kA
Number of poles: 3 P
Number of modules: 3
Operating voltage
AC current: 230/400 V
Frequency: 50/60 Hz
Connection type: QuickConnect
