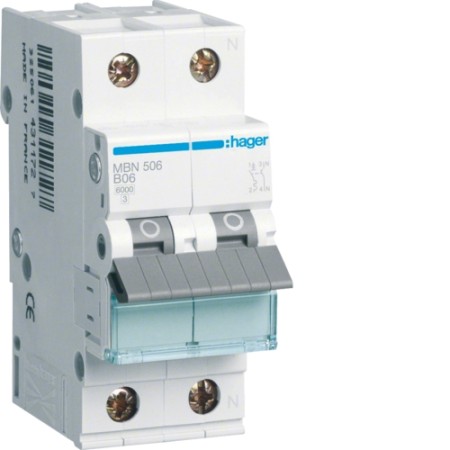

Hager MBN506 LS switch 6A/1pol+N/B 6kA circuit breaker 1 polig+N B-characteristics 6A 2 modules

Circuit breaker 1polig+N 6kA B-Characteristic 6A
2 modules

circuit breaker according to DIN VDE 0641 part 11/8.92,
IP2x contact protection according to DIN VDE 0106 part 100 with
VDE characters. LS with time-reduced thermal
Loose for overload protection and electromagnetic
Loose for short-circuit protection. Suitable for
retrofitting of additional equipment.
marking option directly on the device and
individual withdrawal from the phase rail composite
Unlocking the quick-fit rail mounting.

Rated current: 6 A
Trigger characteristic: B
Nominal shutdown capacity: 6 kA
Number of poles: 2 P
Number of modules: 2
Operating voltage
AC current: 230/400 V
Frequency: 50/60 Hz
Connection type: screw technology
