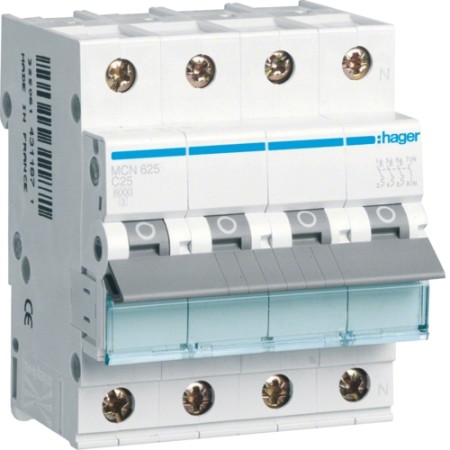

Hager MCN625 LS switch 25A/3pol+N/C 6kA C-characteristics 4 modules

Rated current: 25 A
Trigger characteristic: C
Nominal shutdown capacity: 6 kA
Number of poles: 4 P
Number of modules: 4
AC voltage: 230/400 V
Insulation voltage: 500 V
Frequency: 50/60 Hz
Connection type: screw technology
Torque: 2,8Nm
Total loss power at rated current: 10,1 W
Device life, electrical switching games: 4000
Machine life mechanical switching games: 20000
Operating temperature: -25 to 60 °C
Storage temperature: -25 to 80 °C
Height installed product: 83 mm
Wide installed product: 70 mm
Deep installed product: 70 mm
