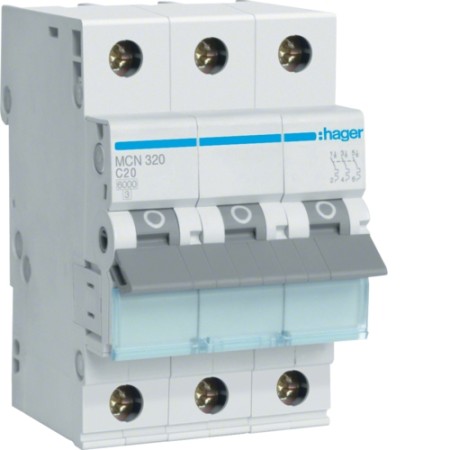

Hager MCN320 LS switch 20A/3pol/C 3 polig 6kA C-characteristic 20A 3 modules

Rated current: 20 A
Trigger characteristic: C
Nominal shutdown capacity: 6 kA
Number of poles: 3 P
Number of modules: 3
AC voltage: 230/400 V
Insulation voltage: 500 V
Frequency: 50/60 Hz
Connection type: screw technology
Torque: 2,8Nm
Total loss power at rated current: 8.9 W
Device life, electrical switching games: 4000
Machine life mechanical switching games: 20000
Operating temperature: -25 to 60 °C
Storage temperature: -25 to 80 °C
Height installed product: 83 mm
Wide installed product: 52.5 mm
Deep installed product: 70 mm
