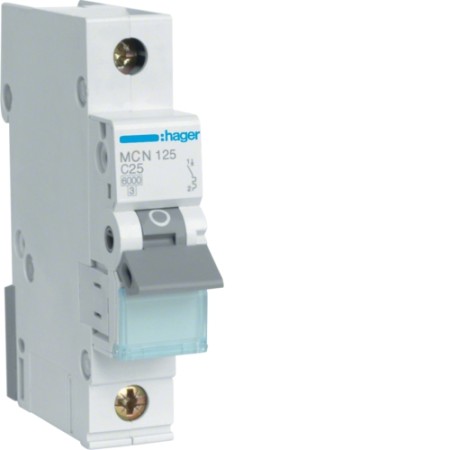

Hager MCN125 LS switch 25A/1pol/C 6kA circuit breaker 1 polig 6kA C-characteristics 25A 1 module



Circuit breaker 1polig 6kA C-Characteristic 25A 1 module circuit breaker according to DIN VDE 0641 part 11/8.92 , contact protection IP2x according to DIN VDE 0106 part 100 with VDE characters. LS with time-delayed thermal exhaust for overload protection and electromagnetic exhaust for short-circuit protection. Suitable for retrofit installation of additional equipment. Possibility of marking directly on the device and individual removal from the phase rail composite by unlocking the quick attachment of the hat rails.

Rated current:25 A
Trigger characteristic:C
Nominal deactivation capacity:6
Number of poles:1 P
Number of modules:1
AC voltage:OF 230/400 V
Insulation voltage:500 V
Frequency:50/60 Hz
Connection type:Screw technology
Torque:2.8 Nm
Total power loss under rated current:3 W
Device life, electrical switching games:4000
Machine life mechanical switching games:20000
Operating temperature:-25 to 60 °C
Storage temperature:-25 to 80 °C
Height installed product:83 mm
Wide installed product:17.5 mm
Deep Installed Product:70 mm
€8.77 VAT included €7.31 (VAT excl.)
