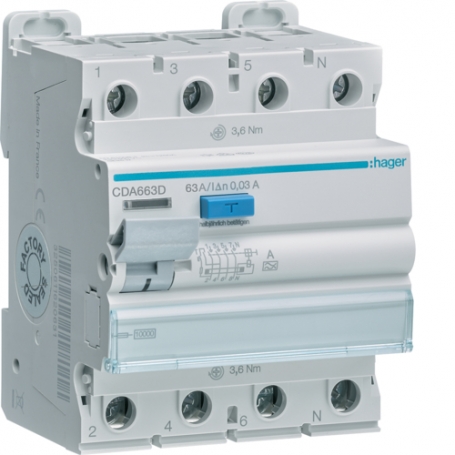

Hager CDA463D fault current circuit breaker 4 polig 6kA 63A 30mA Type A

fault current protection switches 4 polig 6kA 63A 30mA type A. fault current protection switches (FI) according to EN 61008-1, DIN EN 61008-2-1, VDE 0664 part 10 + 11, touch protection IP2x according to DIN VDE 0106 part 100. Suitable for subsequent mounting of additional devices (mount without tool). Connection terminals with wire insertion protection, Bi-Connect terminals at the bottom, external blue test button. All products with VDE characters. Labeling option directly on the device.

Rated current	63 A
Type of differential protection	A
Sensitivity	30 mA
Number	4 P
Impact current resistance (pulse fault currents 8/20μs)	0,25
Number of modules	4
Frequency	50 Hz
Assembly type	DIN rail
Connection type	Screw technology
Connection cross section with flexible conductor	16mm2
Connection cross section for rigid conductor	25mm2
Torque	2.8 Nm
Type of protection	IP20
Insulation voltage	500 V
Impact strength	4 kV
Additional equipment possible	1
Operating temperature	-25 to 40 °C
Machine life mechanical switching games	4000
Device life, electrical switching games	2000
Total loss power at rated current	18.5 W
Degree of contamination according to IEC 60664 / IEC 60947-2	2
Height above N.N.	2000 m
Rated current at 20° C	63 A
Rated current at 30° C	63 A
Rated current at 35° C	63 A
Rated current at 40° C	63 A
Rated current at 45° C	60 A
Rated current at 50°C	58 A
Rated current at 55° C	55 A
Rated current at 60°C	51 A
Rated current at 65°C	48 A
Rated current at 70°C	45 A
Storage temperature	-55 to 70 °C
Height installed product	83 mm
Wide installed product	70 mm
Deep Installed Product	70 mm
