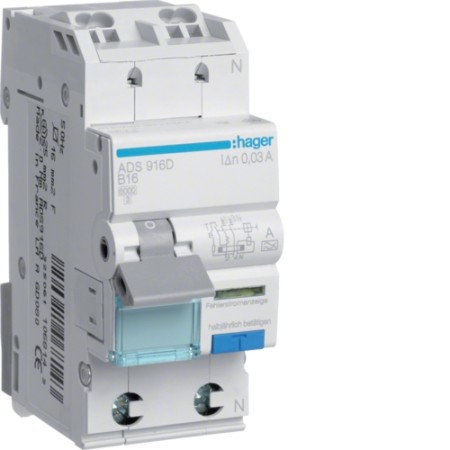

Hager ADS916D FI/LS 1P+N 6kA B-Charakteristik 16A 30mA
zoom_out_map
chevron_left chevron_right
Symbolbild

Hager ADS916D FI/LS 1P+N 6kA B-Characteristic 16A 30mA



fault current circuit breaker according to DIN VDE 0664-20 / EN61009-1 with QuickConnect terminal according to DIN EN 60898-1, VDE 0641-11, at the output up to 20 A and at the access up to 63 A. Simple individual removal from the phase rail composite. With VDE characters. Suitable for subsequent installation of additional equipment. Labeling option directly on the device. Nominal current: 16 A Trigger characteristic: B Nominal shutdown capability: 6 kA Type of differential protection: A Sensitivity: 30 mA Number of poles: 2 P Number of modules: 2 Rated operating voltage Ue: 240 V

Rated current16 A
Trigger characteristicB
Rated value6
Type of differential protectionA
Sensitivity30 mA
Number2 P
Number of modules2
Rated operating voltage Ue240 V
Insulation voltage500 V
Impact strength4,000 V
Frequency50 Hz
Torque2.1Nm
Total loss power at rated current5.2 W
Device life, electrical switching games2000
Machine life mechanical switching games2000
Connection cross section with flexible conductor1 - 16mm2
Connection cross section for rigid conductor1 - 25mm2
Operating temperature-25 to 40 °C
Storage temperature-25 to 70 °C
Height installed product94 mm
Wide installed product35 mm
Deep Installed Product68 mm
€68.84 VAT included €57.37 (VAT excl.)
VAT included
check 3-8 working days
