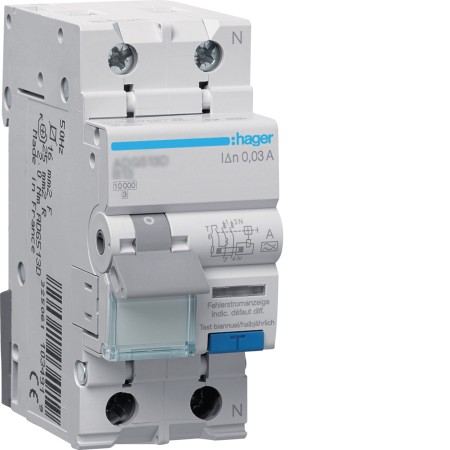

Hager ADG966D FI/LS 16A/1+N/C/30mA G/A fault current circuit breaker 1P+N 6kA C-16A 30mA A-G type

Rated current: 16 A
Trigger characteristic: C
Nominal shutdown capacity: 6 kA
Type of differential protection: A G
Sensitivity: 30 mA
Number of poles: 2 P
Number of modules: 2
AC voltage: 240 V
Insulation voltage: 500 V
Impact strength: 4000 V
Frequency: 50 Hz
Connection type: screw technology
Torque: 2.1Nm
Total loss power at rated current: 5.2 W
Device life, electrical switching games: 2000
Machine life mechanical switching games: 2000
Connection cross section for flexible conductor: 1 - 16mm2
Connection cross section for rigid conductor: 1 - 25mm2
Operating temperature: -25 to 40 °C
Storage temperature: -25 to 70 °C
Height installed product: 83 mm
Wide installed product: 35 mm
Deep installed product: 68 mm
