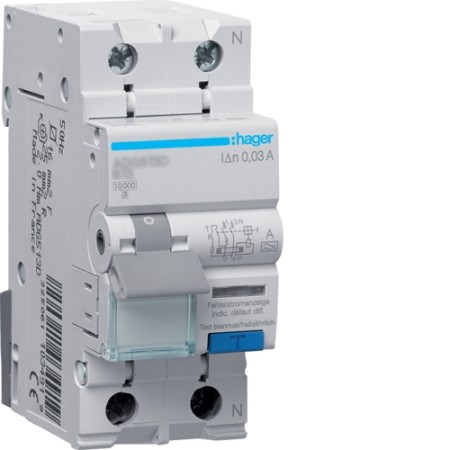

Hager ADG513D FI/LS 1P+N 10kA B- 13A 30mA Typ A-G
zoom_out_map
chevron_left chevron_right
Symbolbild

Hager ADG513D FI/LS 1P+N 10kA B- 13A 30mA Type A-G



1P+N 10kA B- 13A 30mA type A-G fault current circuit breaker according to EN 61009-1 and EN 61009-2-1, short-term delayed according to ÖVE E 8601. IP2x contact protection according to DIN VDE 0660 part 514. Suitable for subsequent mounting of additional devices (mount without tool). Connection terminals with wire insertion protection, Bi-Connect terminals below, external blue test button for half-yearly actuation and fault current display. Easy removal from the phase rail composite. All products with ÖVE characters. Labeling option directly on the device. Nominal current: 13 A Trigger characteristic: B Switching capacity Icn AC according to IEC 60898-1: 10 kA type of fault current protection: A G Rated fault current: 30 mA Number of poles: 2 P Number of modules: 2 Rated operating voltage Ue: 230 V

€74.84 VAT included €62.37 (VAT excl.)
VAT included
check 2-5 days

Frequently bought together

  • Hager ADG513D FI/LS 1P+N 10kA B- 13A 30mA Type A-G
  • +
  • Hager CJG440D FI switch 4P 40A 30mA G/A-VSA G type pre-securable
  • +
  • Hager KB663KT Pin rail 1FI-4P+1LS-3+N+5LS-1+N/1PLE
  • Total price: €183.83
SSL-encrypted data transmission
10,000 items available within 72 hours
Fast response
ADG513D
3250611034919
