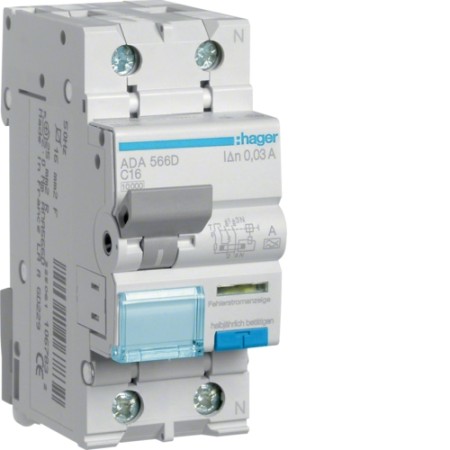

Hager ADA566D 1P+N 10kA C-16A 30mA Typ A
zoom_out_map
chevron_left chevron_right
Symbolbild

Hager ADA566D 1P+N 10kA C-16A 30mA Type A



1P+N 10kA C-16A 30mA Type A fault current circuit breaker according to DIN VDE 0664 Part 20 / EN61009-1 and DIN VDE 0664 Part 21 / EN61009-2-1. Contact protection according to DIN VDE 0660 part 514. Bi-Connect terminals below, blue test button and fault current display. Easy removal from the phase rail composite. With VDE characters. Suitable for subsequent installation of additional equipment. Labeling option directly on the device. Rated current: 16 A Trigger characteristic: C Switching capacity Icn AC according to IEC 60898-1: 10 kA Type of fault current protection: A Rated fault current: 30 mA Number of poles: 2 P Number of modules: 2 Rated operating voltage Ue: 240 V

€66.53 VAT included €55.44 (VAT excl.)
VAT included
check 2-5 days

Frequently bought together

  • Hager ADA566D 1P+N 10kA C-16A 30mA Type A
  • +
  • Theben T6100130 Digitale Zeitschaltuhr, Wochenprogramm, 1 Kanal, App-Programmierung möglich
  • +
  • Legrand 601981 Feuchtraumverteiler, Aufputz, IP65-IK09, 1reihig, 12 Module Plexo³
  • Total price: €225.96
SSL-encrypted data transmission
10,000 items available within 72 hours
Fast response
ADA566D
3250611067832
