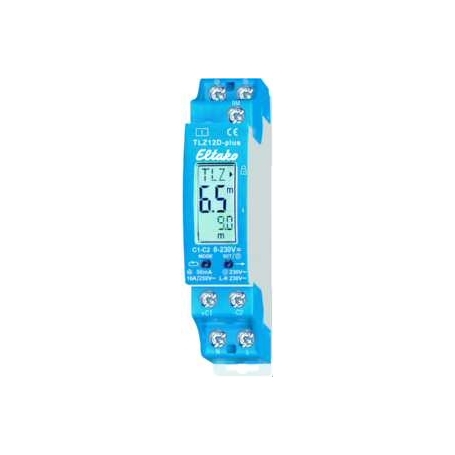

Eltako TLZ12D-plus stairlight time switch



Steplight time scale for mounting on support rail DIN-EN 60715 TH35, 16 A/250 V AC not potential-free, incandescent lamps up to 2300 W, ESL and LED lamps up to 200 W, control voltage 230 V and/or 8..230 V UC, switch off pre-warning and pushbutton continuous light, standby loss adjustable only 0.5 Watt. Stand-by-loss only 0.7 Watt. With ESL optimization and multifunction. The functions and times are entered according to the user manual with the MODE and SET keys and displayed digitally on the -LC display. A key lock is possible. Contact circuit in the zero passage for protecting the contacts and lamps. In particular, this extends the service life of energy-saving lamps. The noiseless electronics do not harass the most sensitive ear, unlike many synchronous motors with mechanical transmission. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network. Control, supply and switching voltage 230V. In addition with galvanically separated universal control voltage 8..230V UC. For 3- and 4-wire circuits, switchable, with attic lighting at 4-wire circuit. Automatic detection of the circuit type. Glow lamp current up to 50mA, depending on the ignition voltage of the glow lamps. Precise time setting 1 to 99 minutes. Own continuous light button with the protruding button SET in the functions TLZ, ESV, ES and ER. With motion detector control input BM, which converts the input signal into a control pulse in the function TLZ. Width in division units: 1 Relapse delay: 1 - 1 min Function: electronic with multifunction Assembly type: DIN rail Number of locks: 1 Control voltage 1: 230 - 23

€59.13 VAT included €49.28 (VAT excl.)
VAT included
