Eltako PL-SM1L Decentral sensor input 230V

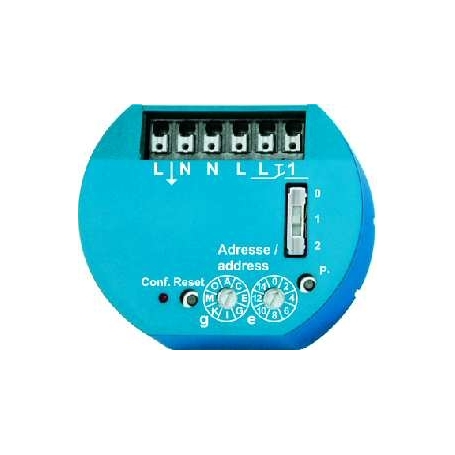

Powerline sensor input for mounting in 58 mm switch boxes, powerline sensor input with 1 channel, sensor input 230W, stand-by loss only 0.5 Watt. For controlling and switching at various points. Number of inputs: 1 Powerline sensor input with 1 channel. 53x43mm, 25mm deep, for mounting in 58mm switch boxes. Sensor input 230W. Stand-by loss only 0.5 Watt. For controlling and switching at various points. The sensor input acts on all actuators with the same address or as a central probe when the element address 0 is used. For address assignment there are two rotary switches on the front: The left rotary switch determines the group address g with 16 alphabetical values from A to P. The right rotary switch determines the element address e with 16 numerical values from 0 to 15. Above it there is a sliding switch as a configuration switch with the positions 0, 1 and 2. On the left of the rotary switches there is a red LED that displays all activities. In addition, the reset button and on the right there is a service pin. Functions according to user manual. The above connection terminals are plug terminals for conductor cross sections from 0.2mm2 to 1.5mm2.

€145.18 VAT included

€120.99 VAT excluded

check 3-10 days
