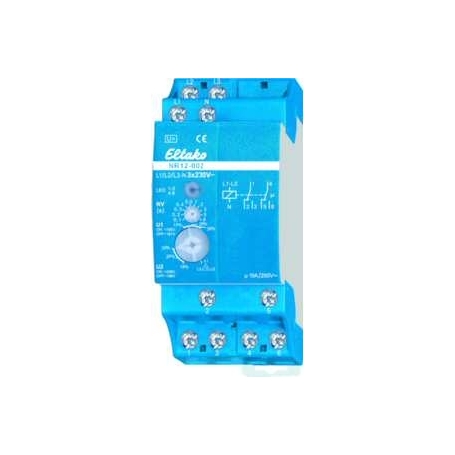

Eltako NR12-002-3X230V NEWS

Power monitoring relay for mounting on support rail DIN-EN 60715 TH35, for monitoring 230 W AC voltage against the zero conductor, drop delay adjustable 0.1 to 8 seconds, draw delay 0.5 s, LED display for applied voltage, with the lower rotary switch on the front side two draw-on or respectively. Relapse voltages are set: U1: 161W drop-back voltage and 185V draw voltage U2: 196W drop-back voltage and 206W draw-on voltage according to. WDE 0100 part 718 network monitoring relay with field monitoring. Stand-by loss only 0.8 Watt. Mounting unit for mounting on support rail (2 TE). For monitoring 230W AC voltage between 1 to 3 external conductors and the neutral conductor and for monitoring the rotary field (rotating in the right) in the rotary switch positions 2ph and 3ph. In the position L1/L2/L3, only the rotary field is monitored, regardless of the mains voltage. If L1 fails, the relay will drop immediately without a relapse delay. With the lower rotary switch on the front side, two draw or. Relapse voltages are set and the number of monitored external conductors must be specified. U1: 161W falling voltage and 185V tightening voltage. U2: 196W falling voltage and 206W tightening voltage according to. WDE 0100, Part 718 (formerly: WDE 0108, Part 1). LED display for correct applied voltage. In case of incorrect polarity or a missing external conductor, the LED flashes quickly. Relapse delay RV with the upper rotary switch adjustable from 0.1 to 8 seconds. While the RV time is running, the LED flashes slowly. Suit delay 0.5s. Number of contacts as changer: 2 TLE: 2
