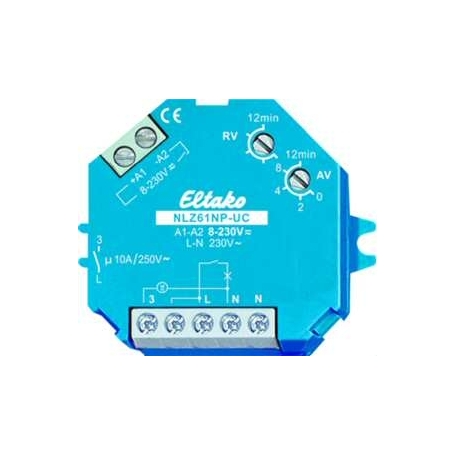

Eltako NLZ61NP-8..230V UC Relay

Relay relays for installation and AP-assembly follow-up switches, locks not potential-free, follow-up time can be adjusted steplessly up to 12 minutes, contact circuit in the zero passage to protect the contacts and consumers. Rated switching power 10 A/250 W AC control voltage 1: 8 - 230 W control voltage type 1: AC/DC frequency of control voltage 1: 50 - 50 Hz switching power fluorescent lamps parallel: 500 VA 1. Time range from/to: 12 - 0 2. Time range from/to: 12 - 1 function: response and fall delay Number of locks: 1 switching power bulbs: 2000 W supply voltage range: 250 - 250 W installation height: 18 mm rated current at 250 W AC: 10 A switching power fluorescent lamps DUO: 1000 VA 1. Time range unit: minutes/hours 2. Time range unit: seconds/minutes Mounting type: Unterputz. 1 lock not potential-free 10A/250V AC. Stand-by loss only 0.7 Watt. For installation. 45mm long, 45mm wide, 18mm deep. Contact circuit in the zero passage to protect the contacts and consumers. The most modern hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. Universal control voltage 8..230V UC galvanically isolated from the supply and switching voltage 230W. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network. Adjustable with the upper rotary switch for 1 to 12 minutes. Response delay 0 to 12 minutes with the lower rotary switch adjustable. Function: With the closing of the control contact (light switch), the response delay AV (if not set 0) begins at whose end the fan is switched on. After opening the control contact and if a set response delay had already expired, the set
