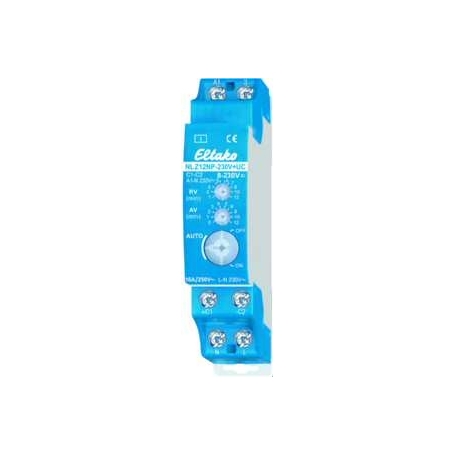

Eltako NLZ12NP-230V+8.230V UC circuit breaker

DIN-EN 50 022 control input 230W AC and additionally adjustable for universal voltage 8 to 230W UC, follow-up time up to 12 minutes, response delay: 0 - 8 minutes, with continuous on- and continuous off switch, 16A/250V AC not potential-free TLE: 1 number of contacts as closer: 1 follow-up switch. Stand-by loss only 0.5 Watt. Contact circuit in the zero passage to protect the contacts and consumers. The most modern hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. Control voltage 230W and additionally galvanically separated universal control voltage 8..230V UC. Very low switching noise. Adjustable with the upper rotary switch for 1 to 12 minutes. Response delay 0 to 12 minutes with the middle rotary switch adjustable. Permanent-on and permanent-off switch with the lower rotary switch. Function: With the closing of the control contact (light switch), the response delay AV (if not set 0) begins at whose end the fan is switched on. From the opening of the control contact and if a set response delay had already expired, the set relapse delay RV (aftertime) at whose end the fan is switched off runs. This follow-up switch can be controlled by all dimmers EUD12 and EUD61 even with the smallest dimming position.
