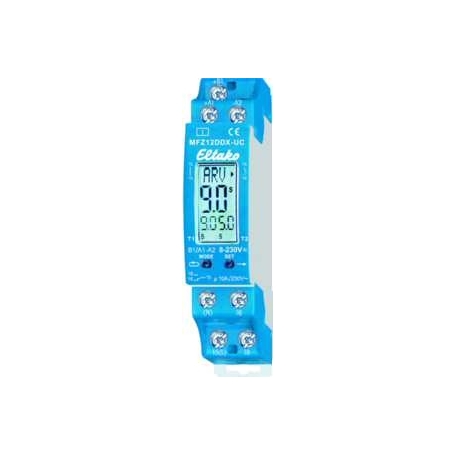

Eltako MFZ12DDX-UC MULTIFUNCTION RELAIS

multifunction time relays for mounting on support rail DIN-EN 50 022, digitally adjustable universal voltage multifunction time relays MFZ12DDX-8.230 V UC, 10A/250V AC, universal control voltage 8..230V UC, supply voltage such as the control voltage, with Eltako-Duplex technology TLE: 1 number of contacts as changer: 1 voltage type for actuation: AC Digital adjustable multifunction time relay with 18 functions. Stand-by loss only 0.05 - 0.5 Watt. To this end, simply connect the N conductor to the terminal (N) and L to 15 (L). This results in an additional stand-by consumption of only 0.1 Watt. Universal control voltage 8..230V UC. Supply voltage like the control voltage. Both the function and the times are entered with keystroke and displayed digitally on an LC display. Only two buttons are to be used. In the time setting, all values can be entered within the preselected time frame (0.1-9.9 or 1-99 seconds, minutes or hours). The longest time is 99 hours. 600 time settings are possible. The entered time(s) is constantly displayed digitally. By using a bistable relay, there is no coil loss power and no heating as a result even in the switched-on state. After installation, wait for the automatic short synchronization before the switched consumer is placed on the network.
