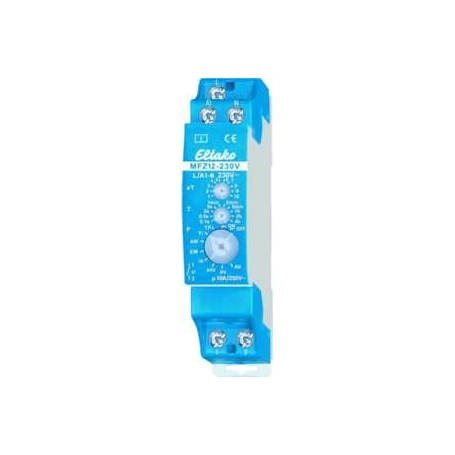

Eltako MFZ12-230V Multifunction time relay

Multifunction time relay 230W with 10 functions, 1 lock potential-free 10A/250V AC, incandescent lamps 1000W, stand-by-loss 0.4 Watt, series installation device for mounting on support rail DIN-EN 60715 TH35 Analog adjustable multifunction time relay with 10 functions. Stand-by loss only 0.4 Watt. Times between 0.1 seconds and 40 hours are adjustable. Functions F: RV = relapse delay. AV = response delay. TI = clock generator starting with pulse. TP = clock generator starting with pause. IA = impulse-controlled response delay (e.g. automatic door opener). EW = turn-on wiper. AW = switch-off wiper. ARV = response and relapse delay. ON = duration ON. OFF = duration AUS. The light-emitting diode under the large rotary switch informs about the contact position during the time sequence. It flashes as long as the working contact is open and illuminates continuously as long as the working contact is closed. The time base T is set with the central latching rotary switch T. Width in division units: 1 control voltage 1: 230 - 230 W control voltage type 1: AC frequency of control voltage 1: 50 - 50 Hz switching power fluorescent lamps parallel: 250 VA 1. Time range from/to: 40 - 0.1 Function: Multifunction Number of locks: 1 Number of openers: 0 Number of switchovers: 0 Voltage type of supply voltage: AC Switching power bulbs: 1000 W Supply voltage range: 230 - 230 W Switching power Luminous lamps inductor: 500 VA Mounting height: 58 mm Rated current at 250 W AC: 10 A Switching power Luminous lamps DUO: 500 VA. Time unit: minutes/hour assembly type: DIN rail
