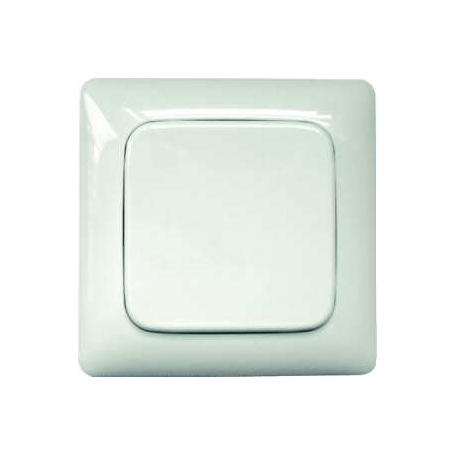

Eltako FT55R-white radio button white without frame

Radio button with rocker and double rocker batteryless radio button, 868 Mhz, for up to 4 different radio signals, is delivered completely with rockers, double rocker, intermediate frame, snap plate and radio module, for cover frame Busch Reflex and Duro radio button for frame internal dimensions 55x55mm with radius, 15mm high. Creates the energy for radio telegrams even when pressing a button, therefore without connecting line and no stand-by loss. For Busch Reflex and Duro cover frame. Included are a rocker, a double rocker, a fastening frame, a holding plate (all the same color), the radio module and an adhesive film. Radio buttons with a rocker can send two evaluateable signals: press the rocker at the top and press the rocker at the bottom. Radio buttons with double rocker can send four evaluateable signals: press two rockers up and down. The holding plate can be screwed onto a flat surface or glued to the wall, to glass or to furniture by means of the attached adhesive film. The sleeves present in the can are used for screw fastening via a 55mm switch box. From work, the double rocker is locked onto the radio module. If these are to be exchanged for the large rocker, then pull the rocker halves forward and do not bend towards the center. Then the large rocker snaps on in such a way that its markings 0 and I correspond to the radio module on the rear side. When glued, first attach the set holding plate with frame and fastening frame - with the latches on top and bottom. Then the set radio module with rocker - marking 0 on the back always up - snap in. Before screwing, release the frame with fastening frame from the holding plate. To this end, press the detents of the holding plate outwardly. Then screw the holding plate - with the latches at the top and bottom -, snap the frame with the fastening frame and snap the set radio module with rocker - marking 0 on the back always at the top. For screw fastening
