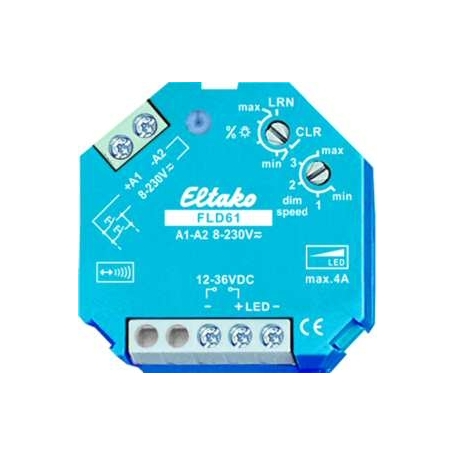

Eltako FLD61 Radio actuator PWM LED Dimming Switch

Radio actuator for installation, dimming switch for LED 12-36V DC, up to 4A, stand-by loss only 0.2-0.4 Watt, minimum brightness and dimming speed adjustable, with children's room and slumber circuit, additionally with light scene control via PC or with radio buttons. Encrypted radio, bidirectional radio and repeater function connectable PWM dimming switch for LED 12-36VDC, up to 4A stand-by loss only 0.2-0.4 Watt. Minimum brightness and dimming speed adjustable. With children's room and slumber circuit. In addition with light scene control via PC or with radio buttons. Encrypted radio, bidirectional radio and repeater function can be switched on. For installation. 45mm long, 45mm wide, 33mm deep. Supply voltage 12 to 36V DC, depending on the connected LED illumination. Output voltage PWM (pulse-width modulation). Output current max. 4A. A pulse-resistant DC power supply is required which supplies the required voltage and the required current of the LED lamp(s). Universal control voltage 8..230V UC, galvanically isolated from the supply and switching voltage. The set brightness level remains stored when switching off (memory). In the event of a power failure, the switching position and the brightness stage are stored and is switched on when the supply voltage is returned. Automatic electronic overload protection and overtemperature shutdown. From the manufacturing week 11/14, encrypted sensors can be learned. Bidirectional radio and/or a repeater function can be switched on. With the upper %Lampe The minimum brightness (fully dimmed) can be set. In the LRN position, up to 35 radio buttons are assigned, one or more central control buttons thereof. The dimming speed can be set with the lower dim speed rotary switch. In addition to the radio control input via an internal antenna, this dimming switch can also be equipped with an event
