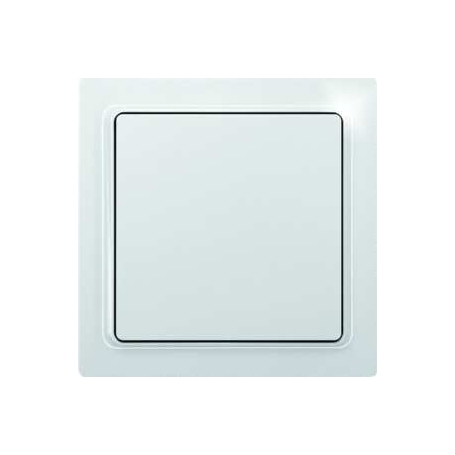

Eltako F4T65-wg Funktaster in E-Design wg

Radio sensor for single mounting 84 x 84 x 16 mm or assembly in the e-design switch system. Creates the energy for radio telegrams even at key pressure, therefore without connection line and no stand-by loss. Funktaster wg pure white glossy for single mounting 84x84x16mm or mounting in the e-design switch system. Creates the energy for radio telegrams even at key pressure, therefore without connection line and no stand-by loss. Included are the frame R1E, a rocker, a double rocker, a fastening frame, a holding plate, the radio module and an adhesive film. Radio buttons with a rocker can send two evaluateable signals: press the rocker at the top and press the rocker at the bottom. Radio buttons with double rocker can send four evaluateable signals: press two rockers up and down. The holding plate can be screwed onto a flat surface or glued to the wall, to glass or to furniture by means of the attached adhesive film. The sleeves present in the can are used for screw fastening via a 55mm switch box. From work, the double rocker is locked onto the radio module. If these are to be exchanged for the large rocker, then pull the rocker halves forward and do not bend towards the center. Then the large rocker snaps on in such a way that its markings 0 and I correspond to the radio module on the rear side. When glued, first glue the set holding plate with frame and fastening frame with the latches on top and bottom. Then the set radio module with rocker ? Marking 0 on the back always snap in top. Before screwing, release the frame with fastening frame from the holding plate. To this end, press the detents of the holding plate outwardly. Then screw the holding plate - with the latches at the top and bottom -, snap the frame with the fastening frame and snap the set radio module with rocker - marking 0 on the back always at the top. The radio module contained in the radio button can
