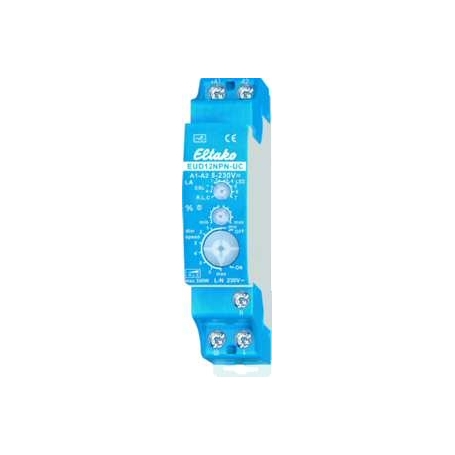

Eltako EUD12NPN-UC Electric shock dimming switch

Universal dimming switch for mounting on support rail DIN-EN 60715 TH35 Power MOSFET up to 400 W, for lamps up to 400 W, depending on the ventilation conditions, dimmable energy-saving lamps ESL and dimmable 230 V-LED lamps additionally depending on lamp electronics, automatic lamp detection, minimum or maximum brightness and dimming speed adjustable, children's room and slumber circuit universal dimming switch. Automatic lamp detection. Stand-by loss only 0.1 Watt. Minimum or maximum brightness and dimming speed adjustable. With children's room and slumber circuit. Universal dimming switch, depending on the ventilation conditions. Dimmable energy-saving lamps ESL and dimmable 230V LED lamps additionally depend on lamp electronics. Switching in the zero passage with soft-on and soft-out for lamp protection. Universal control voltage, galvanically isolated from the supply and switching voltage. No minimum load required. Short control commands turn on/off, permanent control changes the brightness up to the maximum value. An interruption of the control changes the dimming direction. The set brightness level remains stored when switching off (memory). In the event of a power failure, the switching position and the brightness stage are stored and is switched on when the supply voltage is returned. From 110W control voltage glow lamp current 5ma. Automatic electronic overload protection and overtemperature shutdown. Width in division units: 1 Number of outputs: 1 Output power from/to: 400 - W Voltage range: 230 - W Power supply usable: Yes Bus system EIB/KNX: No Bus system Radio bus: No Bus system Powernet: No Bus connection included: No Bus system LON: No Other bus systems: without on-site/hand operation: Yes With LED display: Yes Parallel operation possible: No
