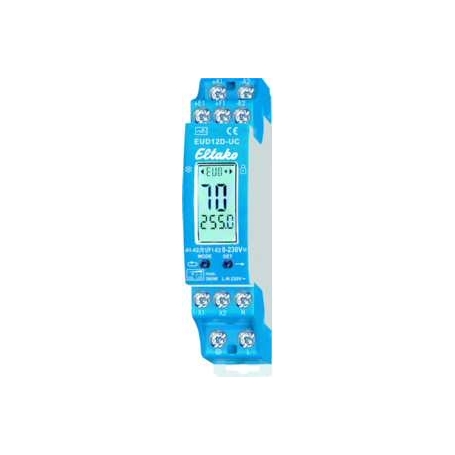

Eltako EUD12D-UC power surge dimming switch

Universal Bus Dimming Switch for mounting on DIN-EN 60715 TH35 Power MOSFET up to 400 W, for lamps up to 400 W, depending on the ventilation conditions, dimmable energy saving lamps ESL and dimmable 230 V-LED lamps additionally depending on the lamp electronics, automatic lamp detection, minimum or maximum brightness and dimming speed adjustable, children's room and slumber circuit width. Stand-by loss only 0.3 Watt. Minimum brightness, maximum brightness and dimming speed adjustable. With children's room and slumber circuit. 1 division unit. Universal dimming switch for lamps up to 400W, depending on the ventilation conditions. Dimmable energy-saving lamps and dimmable 230V LED lamps additionally depend on lamp electronics. Up to 3600W with power inputs at terminals X1 and X2. The control inputs are galvanically separated from the supply and switching voltage. Switching in the zero passage with soft-on and soft-out for lamp protection. In the event of a power failure, the switching position and the brightness stage are stored and is switched on when the supply voltage is returned. From 110W control voltage glow lamp current 5ma (not at RTD). Automatic electronic overload protection and overtemperature shutdown. The functions and times are entered according to the user manual with the MODE and SET keys and displayed on the LC display. A key lock is possible.
