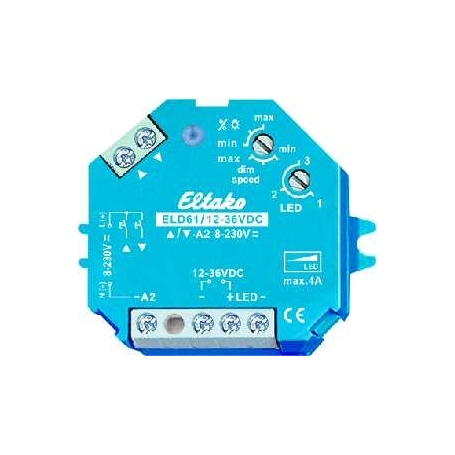

Eltako ELD61/12-36VDC dimmer switch

LED dimming switch for installation and AP mounting Power MOSFET for LED lamps 12-36 W DC to 4 A, pulse width modulation PWM. Stand-by loss only 0.1 Watt. Minimum brightness and dimming speed adjustable, Children's room and slumber circuit Operation type: Rotary knob Halogen-free: Yes Serial dimmer: No Conveyor input: No Applicable with motion detector: No Applicable with presence detector: No Applicable with time switch/timer: No Applicable with radio button: No Applicable with IR button: No Adjustment with screw Material: Plastic Material: Thermoplastic. Stand-by loss only 0.1 Watt. Minimum brightness and dimming speed adjustable. With children's room and slumber circuit. For installation. 45mm long, 45mm wide, 18mm deep. Dimming switches for R and LED loads up to 4A depending on the ventilation conditions. With soft-on and soft-out for lamp protection. Supply voltage 12 to 36W DC, depending on the connected LED illumination. A pulse-resistant power supply is required. Universal control voltage 8..230V UC, galvanically isolated from the supply voltage. Either directional keys can be connected to arrow up+bottom, or these connection terminals are bridged and a probe is connected as a universal probe. With universal probe: Short control commands turn on/off, permanent control changes brightness up to the maximum value. An interruption of the control changes the dimming direction. With directional sensor: turn on and dim with arrow up, turn off and dim down with arrow down. A double pulse with arrow up causes dimming up to full brightness with the set dimming speed (dimspeed). The set brightness level remains stored when switching off (memory). For a current
