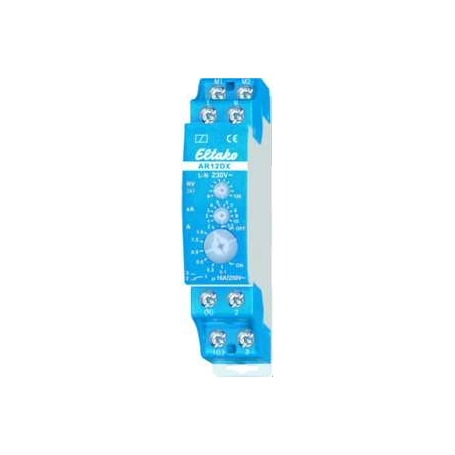

Eltako AR12DX-230V power relay

Current relays for mounting on support rail DIN-EN 60715 TH35, potential-free 16 A /250 W AC, stand-by loss only 0.8 Watt current relay, stand-by loss only 0.8 Watt. Mounting unit for mounting on support rail (1 TE). To this end, simply connect the N conductor to the terminal (N) and L to 1 (L). This results in an additional stand-by consumption of only 0.1 Watt. If the contact is used for controlling switching devices which themselves do not switch in the zero passage, (N) should not be connected, since the additional closing delay otherwise causes the opposite. With an internal ring core current converter, the alternating current flowing via a consumer W1 is compared with the set value from 0.1A to a maximum of 32A and, when exceeded, a relay switches off a consumer W2 connected to 2 within 0.5 seconds or a consumer W3 connected to 3. Adjustment accuracy ±5%. From 25A, the relay always switches on. The most modern hybrid technology combines the advantages of wear-free electronic control with the high power of special relays. The current base A is set with the lower latching rotary switch A. TLE: 1 Number of contacts as changer: 1 Rated control voltage Us at AC 50 Hz: 230 - W
