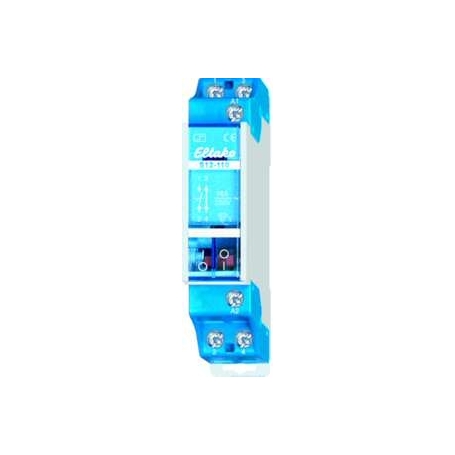

Eltako S12-110-230V AC STROMSTOSSCHALTER

Current surge switches for mounting on support rails DIN-EN 60715 TH35 rated switching power 16 A / 250 W AC or. 10 A / 400 W AC with manual actuation and switching position display mechanical storage of the switching position Electromechanical current surge switch with manual actuation and switching position display. Switch-on time 100%. Tax payable 5-6W. Contact distance 3mm. Distance control connections/contact > 6mm. Number of locks: 1 Number of openers: 1 Width in division units: 1 Rated switching current: 16 A Control voltage 1: 230 - W Control voltage type 1: AC Installation depth: 55 mm Installation type: DIN rail Frequency of control voltage 1: 50 - 50 Hz Voltage type of supply voltage: AC Supply voltage range: 250 - 250 W Max. Bulb load: 2300 W Max. Lamp load: 2300 VA Max. Fluorescent lamp load (Duo circuit): 2300 VA Max. Fluorescent lamp load (parallel compensated): 500 VA Max. Switching current (cos phi = 0.6): 10 A manual operation possible: Yes
