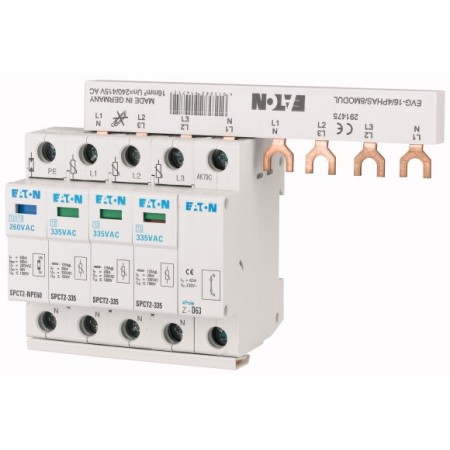

Eaton SPCT2-335-3+NPE/BB surge arrester 3+N/BB 335VAC 3x20KA 167630
Design of poles | 3 + N / P | ||
Rated leakage current (8/20) | KA | 20 | |
Rated voltage AC | V | 335 | |
Rated voltage DC | V | 0 | |
Maximum permanent voltage AC | V | 335 | |
Highest continuous voltage DC | V | 0 | |
Max. PV voltage | V | 0 | |
Protection level | KV | 1.6 | |
Protection level L-N | KV | 0 | |
Protection level N-PE | KV | 0 | |
Short circuit | no | ||
Assembly type | Hat rail 35 mm | ||
Size | 4 THE | ||
Max. Conductor cross-section rigid (one/multiple) | mm2 | 25 | |
Max. Conductor cross section flexible (fine) | mm2 | 0 | |
With telecommunication contact | no | ||
Integrated Preservation | no | ||
Signaling on the device | optical | ||
Test class type 2 | yes | ||
Type of protection (IP) | IP20 |
