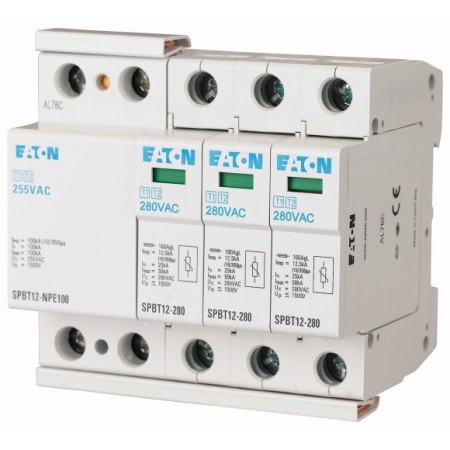

Eaton SPBT12-280-3+NPE Überspannungsableiter 3+NPE 280V, TN-S/TT-Set 158332
zoom_out_map
chevron_left chevron_right
Symbolbild

Eaton SPBT12-280-3+NPE overvoltage arrester 3+NPE 280V, TN-S/TT set 158332



For the protection of consumer equipment against transient overvoltages caused by direct and indirect flashes, as well as switching operations, application according to IEC 60364-5-53 Section 534, test classes I, II according to IEC 61643-1, SPD type T1, T2 according to EN 61643-11, flash protection class III and IV according to IEC 62305, execution without remote message

Net form
-
Design of poles
3 + N / P
Rated leakage current (8/20)
KA25
Rated voltage AC
V280
Rated voltage DC
V0
Maximum permanent voltage AC
V280
Highest continuous voltage DC
V0
Max. PV voltage
V0
Protection level
KV0
Protection level L-N
KV1.5
Protection level N-PE
KV100
Short circuit
no
Assembly type
Hat rail 35 mm
Size
5 TEA
Max. Conductor cross-section rigid (one/multiple)
mm20
Max. Conductor cross section flexible (fine)
mm20
With telecommunication contact
no
Integrated Preservation
no
Signaling on the device
optical
Test class type 2
yes
Type of protection (IP)
IP20
€288.00 VAT included €240.00 (VAT excl.)
VAT included
check 2-5 days
