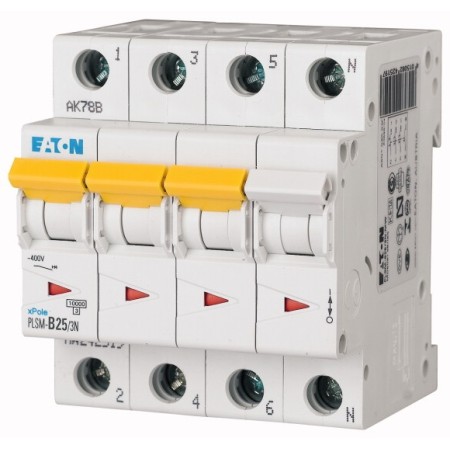

Eaton PLSM-B25/3N-MW LS-Schalter 25A/3pol+N/B 242519
zoom_out_map
chevron_left chevron_right

Eaton
Eaton Industries (Austria) GmbH
Vertriebsbüro Wien​
Scheydgasse 42​ A-1210 Wien​
Tel.: +43 (0) 50868 - 0​
infoaustria@eaton.com

Eaton PLSM-B25/3N-MW LS switch 25A/3pol+N/B 242519



Trigger characteristic
 B
Number of poles (total)
 4
Number of secured poles
 4
Rated current
 A 25
Measurement voltage
 V 400
Measurement switching capacity Icn according to EN 60898 at 230 V
 KA 10
Measurement switching capacity Icn according to EN 60898 at 400 V
 KA 10
Measurement switching capacity Icu according to IEC 60947-2 at 230 V
 KA 0
Measurement switching capacity Icu according to IEC 60947-2 at 400 V
 KA 0
Type of voltage
 AC
Energy limiting class
 3
Frequency
 HZ 50 to 60
Interconnecting neutral conductor
 yes
Suitable for underground installation
 no
Overvoltage category
 3
Pollution
 2
Width in division units
 4
Installation depth
 mm ANNEX
Additional equipment possible
 yes
Type of protection (IP)
 IP20
€69.70 VAT included €58.08 (VAT excl.)
VAT included

Frequently bought together

  • Eaton PLSM-B25/3N-MW LS switch 25A/3pol+N/B 242519
  • +
  • Eaton PLSM-B13/1N-MW circuit breaker LS switch 242247
  • +
  • Eaton PLSM-C16/3N-MW circuit breaker LS switch 242543
  • Total price: €110.65
