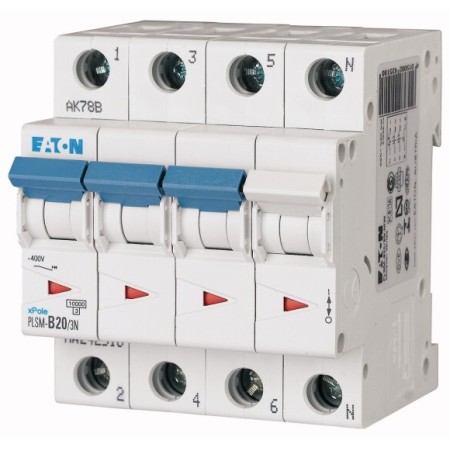

Eaton PLSM-B20/3N-MW LS switch 20A/3pol+N/B 242518

Trigger characteristic			B
Number of poles (total)			4
Number of secured poles			4
Rated current		A	20
Measurement voltage		V	400
Measurement switching capacity Icn according to EN 60898 at 230 V		KA	10
Measurement switching capacity Icn according to EN 60898 at 400 V		KA	10
Measurement switching capacity Icu according to IEC 60947-2 at 230 V		KA	0
Measurement switching capacity Icu according to IEC 60947-2 at 400 V		KA	0
Type of voltage			AC
Energy limiting class			3
Frequency		HZ	50 to 60
Interconnecting neutral conductor			yes
Suitable for underground installation			no
Overvoltage category			3
Pollution			2
Width in division units			4
Installation depth		mm	ANNEX
Additional equipment possible			yes
Type of protection (IP)			IP20

€60.44 VAT included €50.37 (VAT excl.)

VAT included

shopping_cartAdd to basket

check 2-5 days
