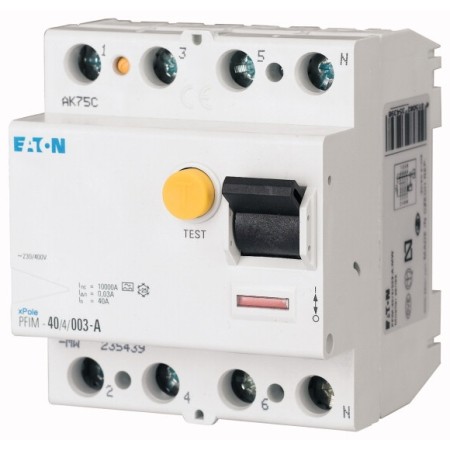

Eaton PFIM-40/4/003-A-MW FI-Schutzschalter A 40A/4 30mA 250A 235439
zoom_out_map
chevron_left chevron_right
Symbolbild

Eaton PFIM-40/4/003-A-MW FI circuit breaker A 40A/4 30mA 250A 235439



Number
4
Measurement voltage
V400
Rated current
A40
Measurement error current
A0.03
Assembly type
DIN rail
Error current type
A
Selective type
no
Short-circuit strength (Icw)
KA10
Impact resistance
KA0.25
Frequency
50 Hz
Additional equipment possible
yes
Type of protection (IP)
IP20
Size (according to DIN 43880)
1
Width in division units
4
Installation depth
mmANNEX
Short-term delayed type
no
€79.50 VAT included €66.25 (VAT excl.)
VAT included
check 2-5 days
