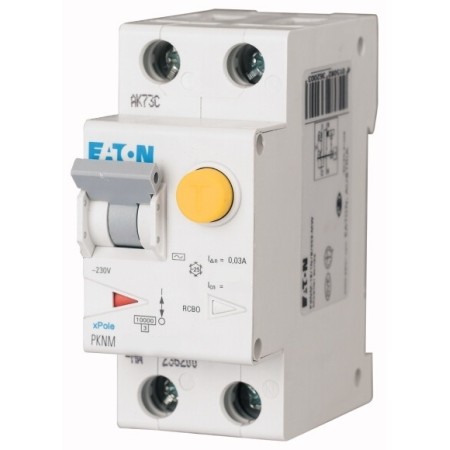

Eaton PKNM-16/1N/C/003-MW FI/LS switch AC 16A/1+N/C 30mA 250A 236212



Number of poles (total)
2
Number of secured poles
1
Measurement voltage
V230
Rated current
A16
Measurement error current
A0.03
Error current type
AC
Energy limiting class
3
Dimensional switching capacity according to EN 60898
KA10
IEC 60947-2 rated
KA0
Frequency
50 Hz
Trigger characteristic
C
Interconnecting neutral conductor
yes
Overvoltage category
3
Pollution
2
Width in division units
2
Installation depth
mm70
Suitable for underground installation
no
Type of protection (IP)
IP20
Impact resistance
KA0.25
Type of voltage
AC
Missing trigger protection
no
