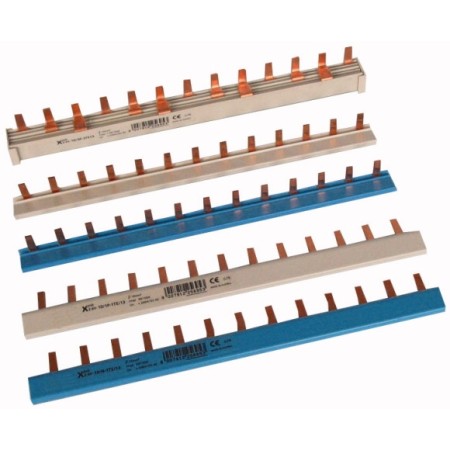

Eaton Z-SV-10/3P+3N-3TE/13 Block displacement 13TE (Stift) End caps 10mm2, 50A, 4-ph 264927
Block displacement for PLN. (1TE), delivery with end caps
Number of phases | 4 | ||
Number | 3 | ||
Suitable for number of devices | 13 | ||
Partial dimension | mm | 1795 | |
Cross-section | mm2 | 10 | |
Length | mm | 232 | |
Number of division units | 3 | ||
Duration of measurement Iu | A | 50 | |
Design of the electrical connection | Pin | ||
Insulated | yes | ||
Measurement surge voltage | KV | 0 | |
Conditional measurement short-circuit current Iq | KA | 25 | |
Max. Rated operating voltage Ue | V | 415 | |
Measurement short-term current resistance Icw | KA | 0 | |
Suitable for N-wire devices | yes | ||
Suitable for devices with auxiliary switch | no |
