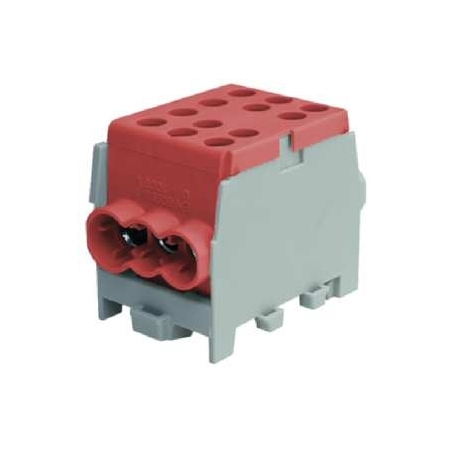

PROTEC.class PHLAK3524BR main line branch terminal

Main line branch terminals 35/25 mm2, 1-pole. Classy. Mounting on 35 mm support rail according to. EN 50022 / EN 60715. For example, for installation small distributors and counter positions according to WDE 0603. Installation small distributor and counter positions AC 400W. Main line branch terminals WDE 0603-2, connection material for low voltage circuits for household and similar purposes WDE 0613, Part 1 / EN 60998-1. Color coding corresponding to valid vein colors. Voltage: 1000 W. WDE certified. Suitable for Cu and Al conductors. Inputs max. 35 mm2: 2. Outputs max. 25 mm2: 4. Clamp body: brass, (galvanized). Clamp screws: steel, galvanized. Insulation housing: plastic, (polyamide) impact-resistant, halogen-free. Main line 10 - 35 mm2 rigid/several, 3.5 Nm. Cutting line: 1.5 - 25 mm2 rigid/multiplier, 2.5 Nm. Stripping length 25 mm. Bushing clamp with 2 screws per clamping point screws with combination slot Pozidriv Z2. IP 20, fingerproof. Corners rounded. Number of poles: 1 Colour: brown
