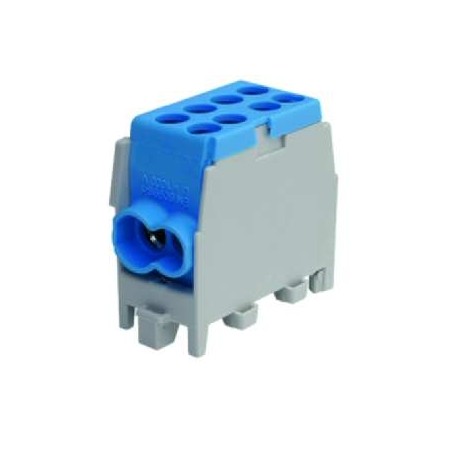

PROTEC.class PHLAK2522BL main line branch terminal

Main line branch terminals 25/16 mm2, 1-pole. Classy. Mounting on 35 mm support rail according to. EN 50022 / EN 60715. e.g. for installation small distributors and counter positions according to. VDE 0603. Installation small distributor and counter positions AC 400V. Main line branch terminals VDE 0603-2, connection material for low voltage circuits for household and similar purposes VDE 0613, Part 1 / EN 60998-1. Color coding corresponding to valid vein colors. Mounting horizontally or vertically. Voltage: 1000 VDE certified. Suitable for Cu and Al conductors. Inputs max. 25 mm2: 2nd outputs max. 16 mm2: 2nd clamping body: brass, (galvanized). Clamp screws: steel, galvanized. Insulation housing: plastic, (polyamide) impact-resistant, halogen-free. Main line 1.5 - 25 mm2 rigid/several, 2.5 Nm. branch line: 1.5 - 16 mm2 rigid/multiplier, 2 Nm. Stripping length 16 mm. Bushing clamp with 2 screws per clamping point screws with combination slot Pozidriv Z2. IP 20, fingerproof. Corners rounded. Number of poles: 1 Colour: blue
