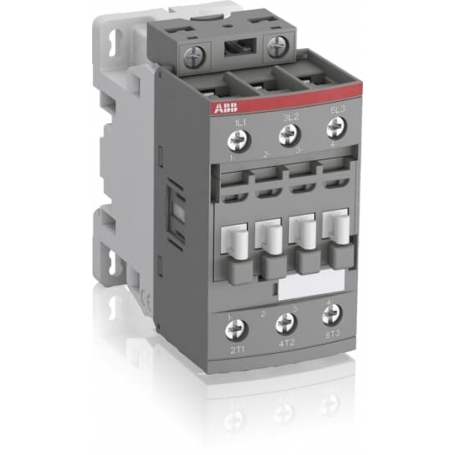

ABB 1SBL277001R1300 AF30-30-00-13 Protector 100-250V 50/60Hz / DC

Protector AF09 to AF96 from 4 to 45 kw AC-3 (400 W) stand for the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 WDC to 24...500 VAC - without additional required extinguishing elements. They can therefore be used worldwide and only in low variance. They switch power circuits with motors, slightly inductive or non-inductive loads. Flexible exchangeable coil connection terminals allow the connection from above, from below or from above and below. Attachable accessories are 1- and 4-pole auxiliary switches that can be plugged on the front side and 2-pole auxiliary switches that can be mounted on the right and left side. A further auxiliary switch block with 1S+1Ö and coil connections A1 and A2 is available until AF65. All auxiliary contacts are designed as mirror contacts according to IEC60947-5-1 Annex L. Other accessories such as timepieces, wiring aids and locking members, among others, complement the range.
